CARBON STEEL FITTINGS

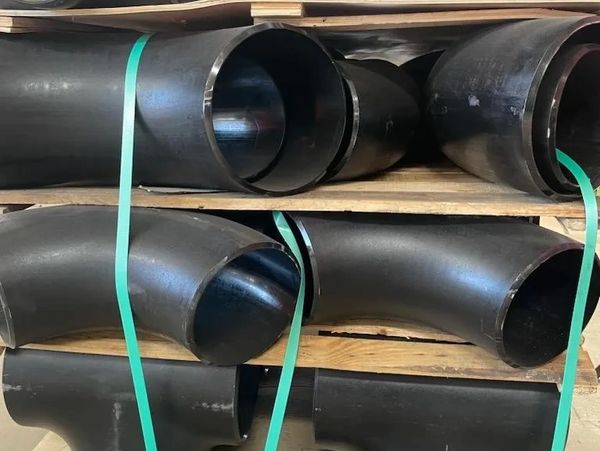

CARBON STEEL BUTTWELD FITTINGS

ASTM A/SA 234 WPB - ANSI/ASME B16.9

SIZE RANGE:

 1/2" TO 48"

SCHEDULES:

 STD, XH, 10, 20, 30, 40, 60, 80, 100, 120, 160, XXH

DESIGNS:

 LR/SR 90 Elbows, 45 Elbows, Tee, Red Tee,

Conc/Ecc Red, LR/SR 180 Return Bend, 3R 45 &

90 Elbows, Caps

SOURCES:

 Domestic, Western European/Asian Approved,

Generic Import, China

HIGH YIELD CARBON STEEL FLANGES

MSS SP-75 & ASTM A860 WPHY52/60/65/70

SIZE RANGE:

 2” - 36”

SCHEDULES:

 STD, XH, Sch40, .625WT, .750WT, 1.00WT

DESIGNS:

  LR/SR 90 Elbows, 45 Elbows, Tee, Red Tee,

Conc/Ecc Red, 3R 45 & 90 Elbows, Caps

SOURCES:

 Domestic, Western European Approved

LOW TEMP:

 WPL6

FORGED CS FITTINGS & BRANCH CONNECTIONS

ASTM A/SA 105 — ANSI/ASME B16.11

SIZE RANGE:

 1/4” - 4” (Threaded), 1/2” - 2” (Socket Weld),

1/2” - 12” (Buttweld)

DESIGNS:

90, St 90, 45, CPLG, 1/2 CPLG, Red CPLG, Hex

Bushing, Sq & Hex Plug, Insert, Union, Cross,

Tee, Red Tee, Cap, Outlets (Threaded, Welded,

Socket, Elbow, Flex)

SOURCES:

Domestic, Generic Import

CLASSES:

  2000/3000/6000/9000

CARBON STEEL NIPPLES AND SWAGES

Swage Nipples: MSS SP-95   Seamless Nipples: ASTM A733

SIZE RANGE

1/4” - 4”

SCHEDULES:

STD, XH, S160, XXH

SOURCES:

Domestic

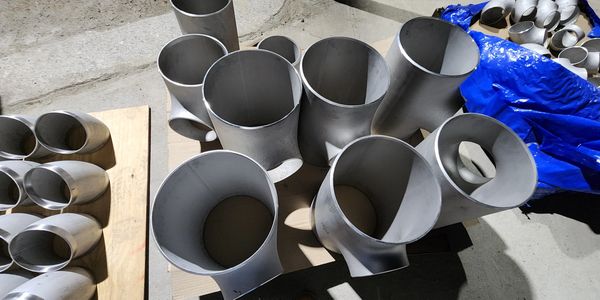

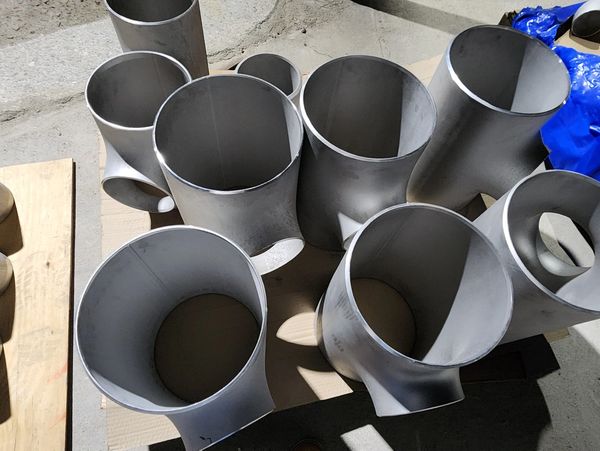

STAINLESS STEEL BUTTWELD FITTINGS

304/L • 304H • 316/L • 316H • 317/L • 310S/310H • 321/H

347/H • 410 •  904L • A20 • DUPLEX 2205/SUPER DUPLEX

254 SMO®

SIZES:

 1/2” to 36”

SCHEDULES:

10S through XXH and heavier

DESIGNS:

Seamless, Welded, Welded with X-Ray

LR90 • LR45 • SR90 • Tees • Caps • Concs • Eccs • Return

Bends • Crosses • Stub Ends

CHROME BUTTWELD FITTINGS

WP11 • WP22 • WP5 • WP9 • WP91

SIZES:

 1/2” to 36”

SCHEDULES:

 STD to XXH and heavier

Seamless: LR90 • LR45 • SR90 • Tees • Caps • Concs • Eccs • Return

Bends

CARBON BUTTWELD FITTINGS

WPB • WPC • WPL6 • HY42 • HY46 • HY52 • HY65 • HY70

SIZES:

 1/2” to 48”

SCHEDULES:

 STD to XXH and heavier

Seamless, Welded with X-Ray

LR90 • LR45 • SR90 • Red 90 • Tees • Caps • Concs • Eccs •

Return Bends • Crosses • Swages

Can also supply the following alloys in Butt-Weld Fittings:

 600, 625, 800, 800HT,

825, 200, 400, 276.
